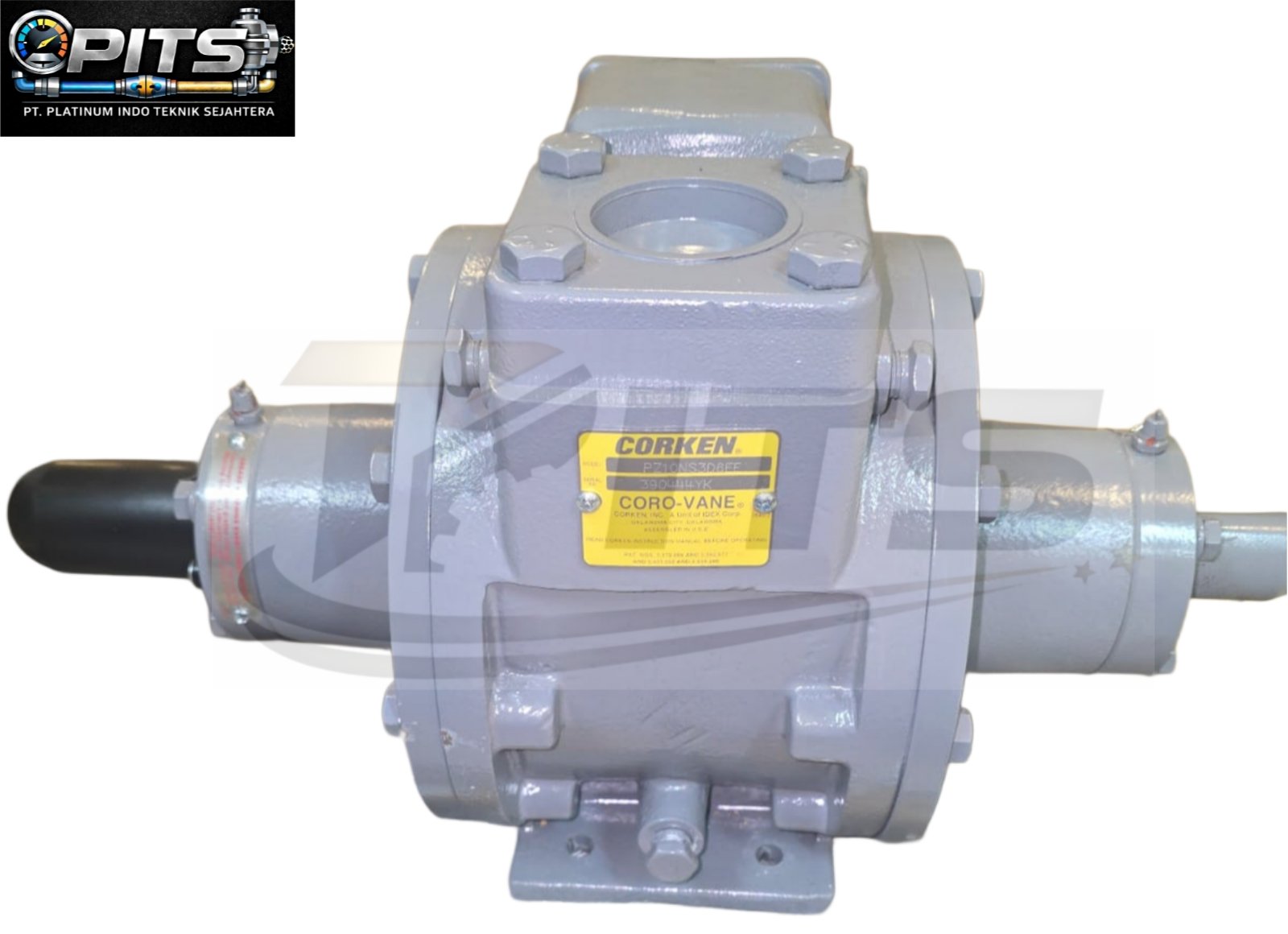

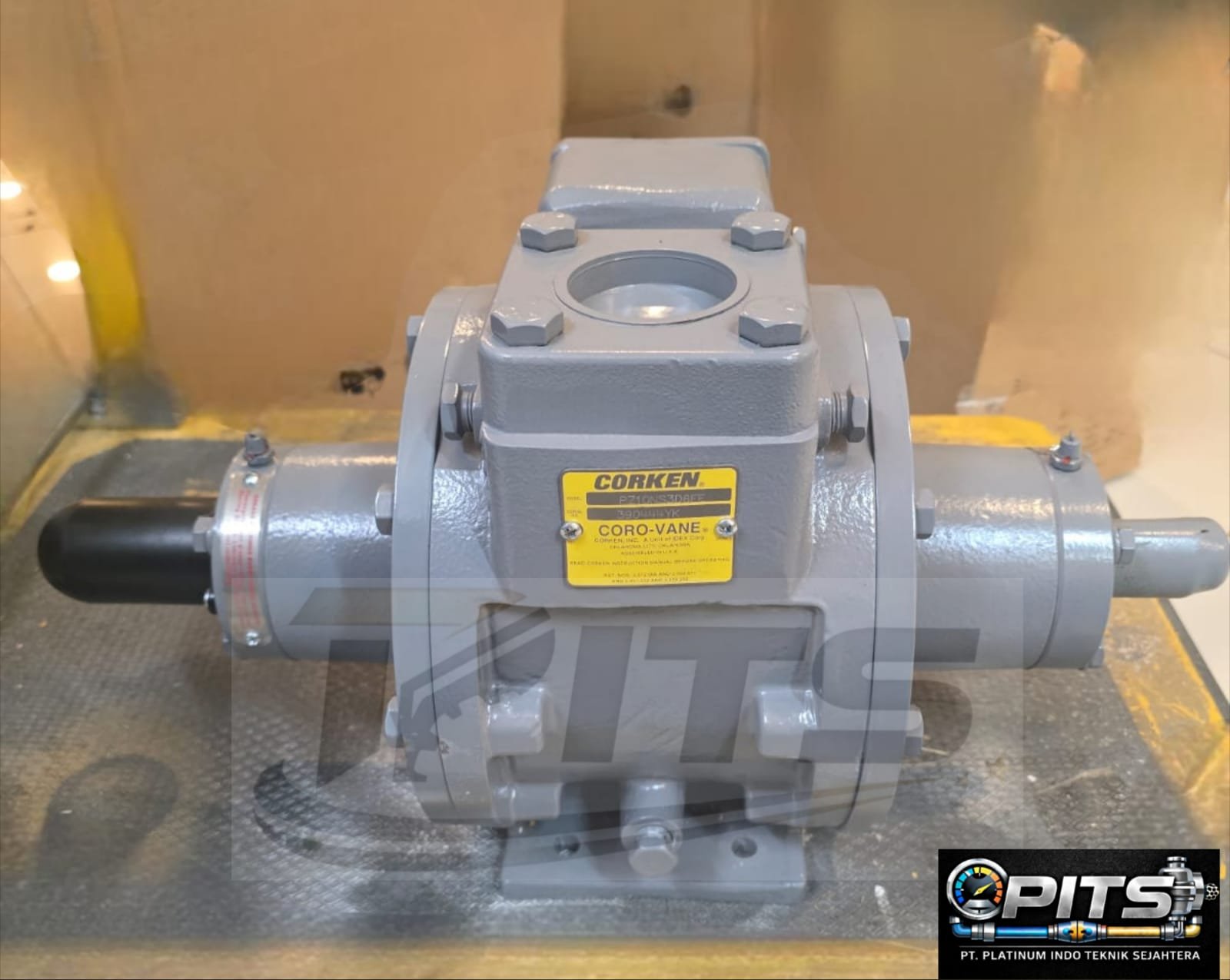

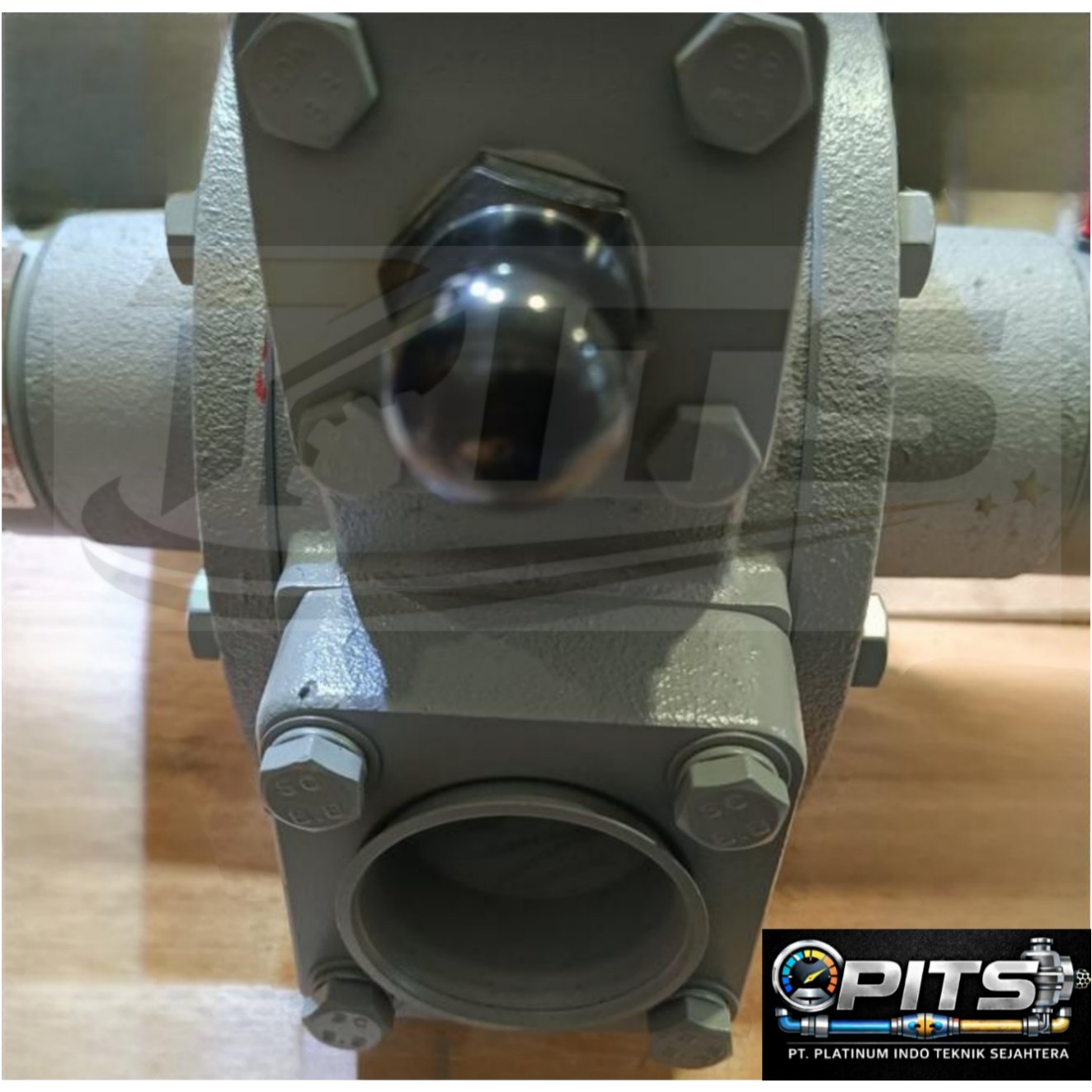

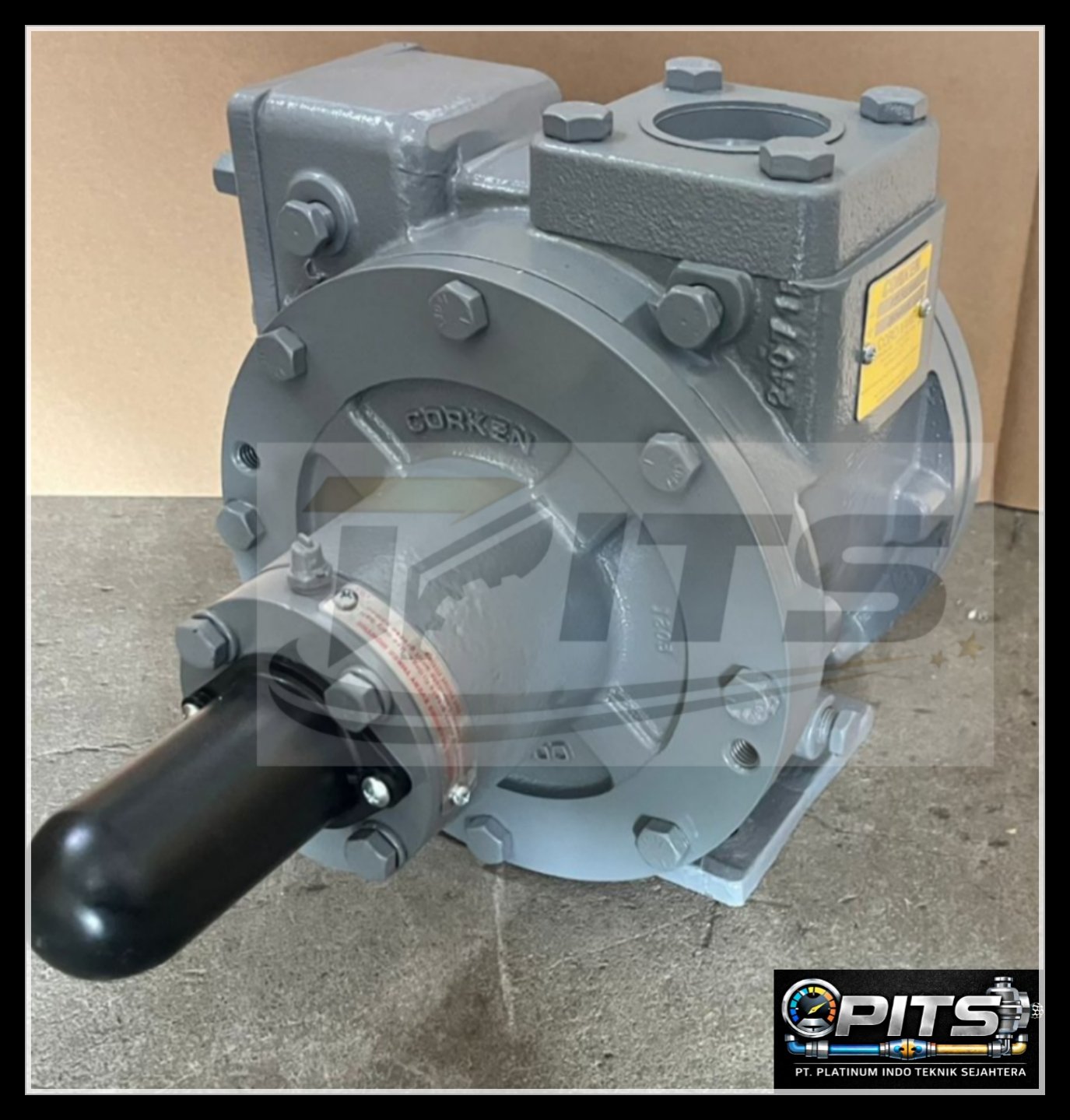

POMPA CORKEN PZ 10 – 2 INCH (Corken Pump)

Spesifikasi POMPA CORKEN PZ 10_2 INCH (Corken Pump) :

Standart Connections : 2″ NPT
Operational Connections : 2½ NPT
Max. Differential Pressure : 125 psid (8.6 bar)
Temperature Range : Up to 300°F (149°C)
Max. Working Pressure : 200 psi (13.8 bar)
Max. Speed : 800 Rpm
Pump Speed : 800 RPM
Differential press: 50 psi ( 3,4 Bar)
Nom.flow rate : 161 gpm (609 L/min)
Brake HP Required : 5,7 bhp (4,3 kw)
Torque required : 499 in.lbs (50,7 N.m)
Fluids Handled : Refined petroleum products and industrial solvents
