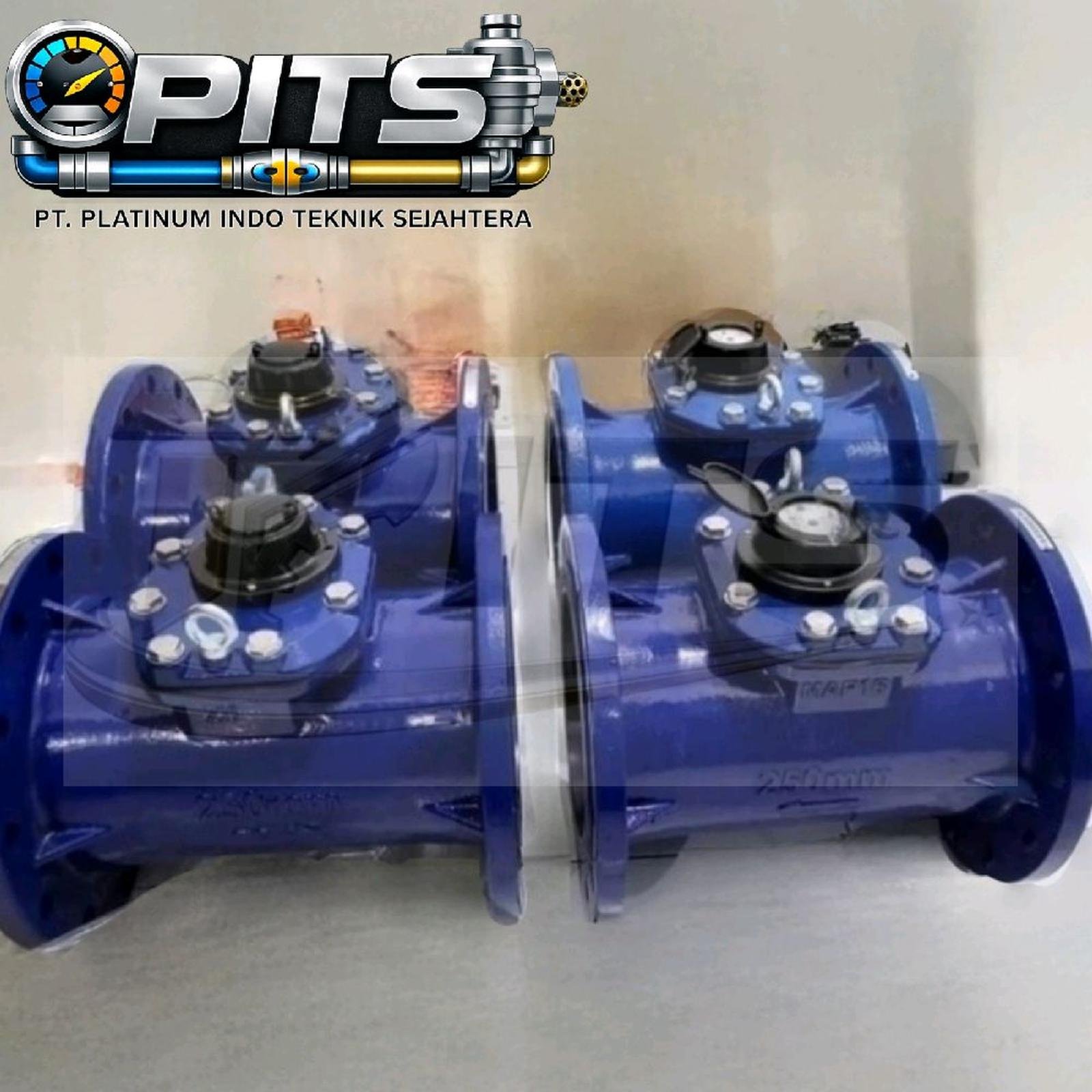

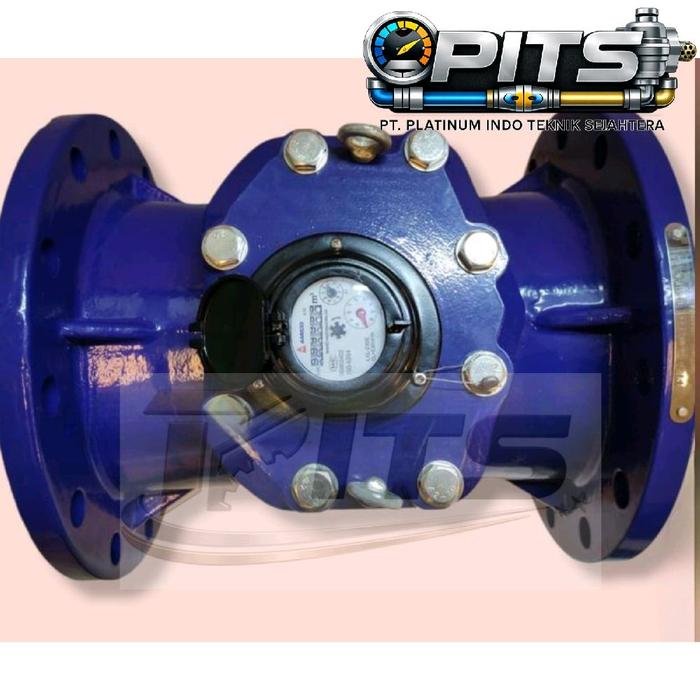

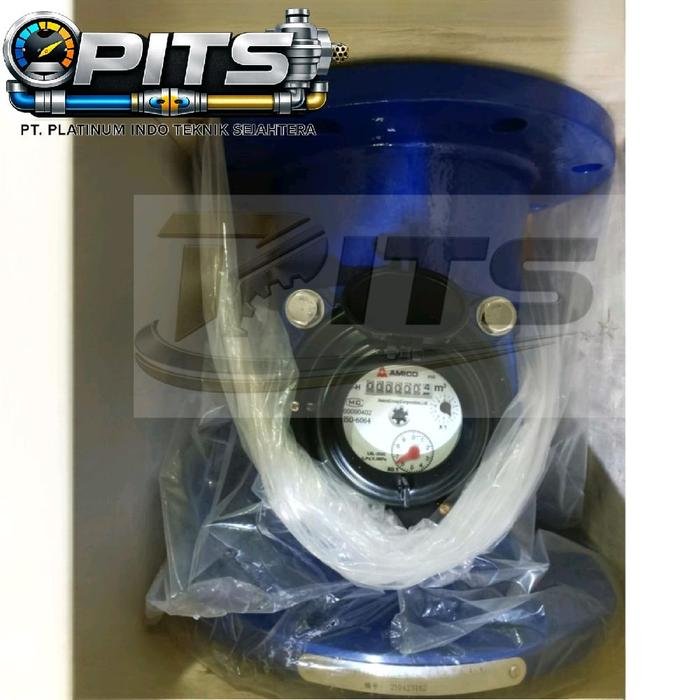

Water Meter Amico 10 inch DN 250 mm

Spesifikasi Water Meter Amico 10 inch DN 250 mm :

Nominal Diameter : DN 250
Nominal Flow (Qn) : 400 m³/hour
Overal Length (L) : 450mm
Metrological class : B
Maximum Flow (short-term) Qmax : 1200m³/hour
Maximum Flow (constant) : 600 m³/hour
Transitional Flow (Qt) : 32 m³/hour
Minimum Flow (Qmin) : 12 m³/hour
Flow Rate with 0.1 bar head lose : 1000 m³/hour
Head lost at Qmax : 0.05 bar
Display range : Min 20 l/ Max 9.999.999m³
Maximum temperature : 50°C
Operating pressure, max : 16 bar
Height (H) : 470 mm
